Device Placement

Placement & Connectivity



We do not recommend ceiling placement if the ceiling is higher than 9 feet. Consider a wall installation if the ceiling height exceeds 9 feet. We recommend placement above the center of two to three stalls. If the area is larger, we recommend multiple devices.



  • Will the motion sensor be activated? (See below, Motion Sensor Range)
  • Is the area a vaping/smoking hotspot?
  • Will the vape cloud be detected?
  • Does your device have good Wi-Fi signal?
  • Allow 24 hours for the device to adjust to your room’s environment prior to testing vape/smoke
  • Visit  www.support.zeptive.com
  • Sign in with your login credentials and visit Installation and Setup for more detailed information.

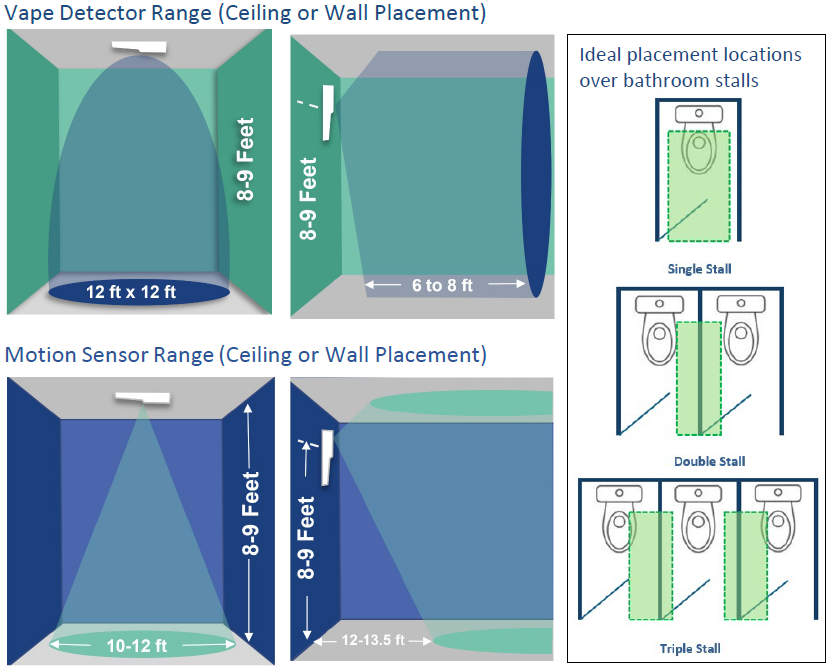

Vape Detector Range

Ceiling Placement Wall Placement

A diagram of a height

Description automatically generated A diagram of a blue circle

Description automatically generated

Motion Sensor Range

Ceiling Placement     Wall Placement

A diagram of a light source

Description automatically generated A blue and green rectangular object with white text

Description automatically generated

D00-00038 2/22/2024
